Creality SparkX i7 Setup and First-Print Guide

Before you begin

• Check that the model and version on your printer match this guide. Some versions include a multicolor system, while others use an external spool. Packaging and accessories may vary by batch.
• Prepare a stable table and leave room for movement and tubing. Open your printer manual and watch the video to locate the shipping restraints. The heated bed is the part that moves or heats up; the build plate sits on top of it and supports the print.
• Use the tools and screws specified for each step. Keep the printer disconnected from power while assembling parts and connecting cables.
• Keep the box, protective packaging and shipping screws, and store the shipping screws separately from the assembly screws.

Assembly video

Watch the video and follow the written steps below it. You can enable subtitles in the YouTube settings if they are available.

Unboxing and assembly — Creality SparkX i7

Watch on YouTube ↗

Network connection and local-printing video

Watch on YouTube ↗

Unboxing and assembly steps

Follow the steps in order and check the images below each step. Click an image to view it or open its reference. Compare screw positions and connections with the images in the printer manual as you assemble the printer.

1. Identify your version first: Single, Color Combo or a version that requires assembly. The main video here covers the Color Combo with CFS Lite; links for the other versions are below.

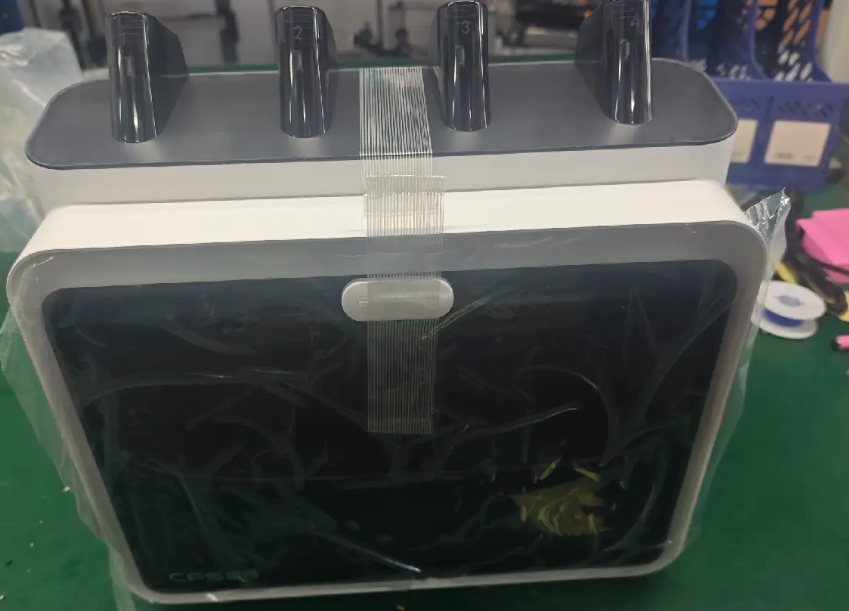

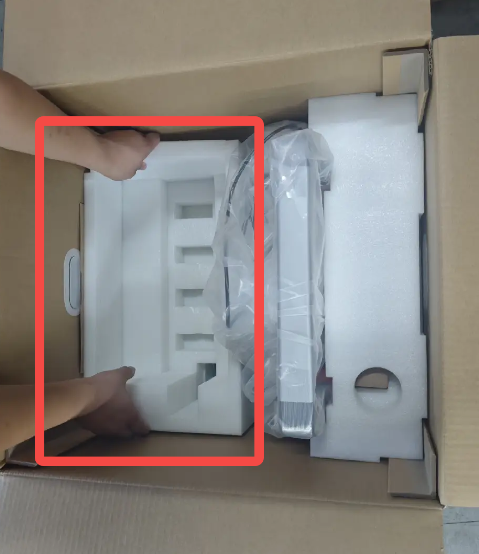

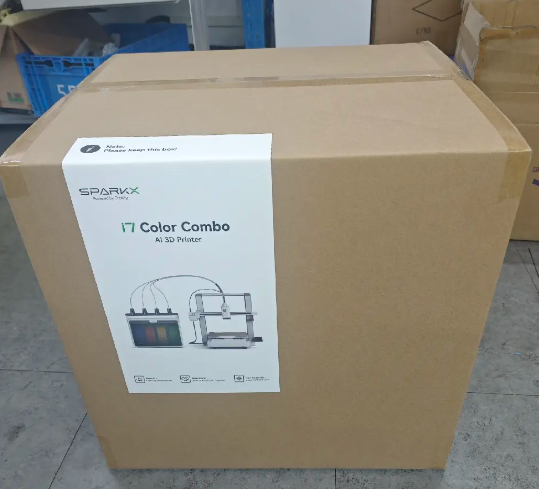

2. Open the carton and remove the spool holder, manual and accessory box. If your version includes CFS Lite, remove it and take off its packaging, tape and internal foam.

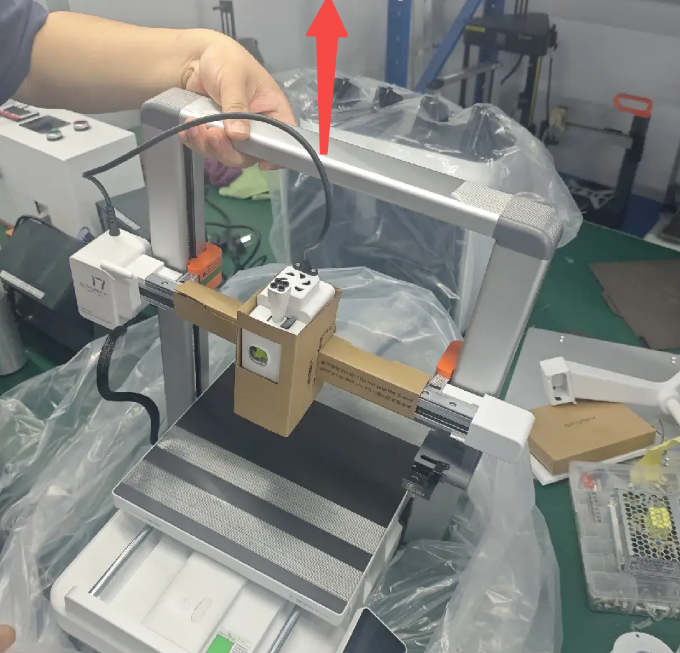

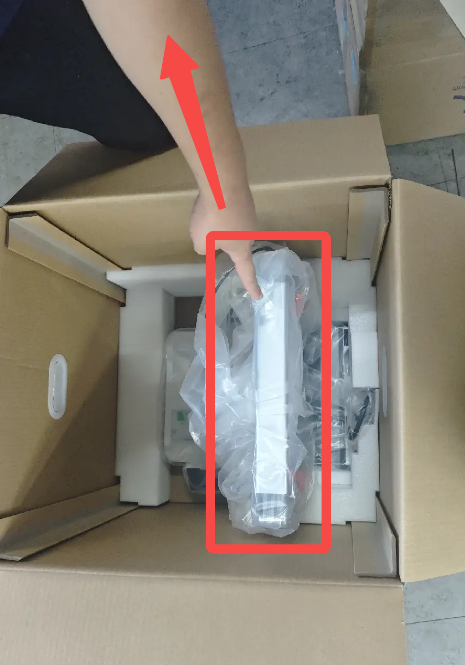

3. Remove the PEI plate and foam around the heated bed. Lift the printer by the top of its frame; do not hold the X-axis rail.

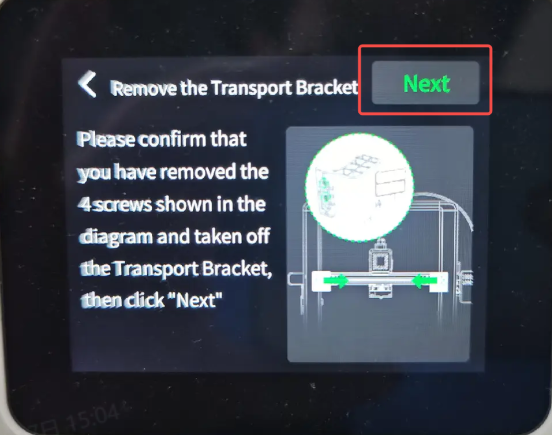

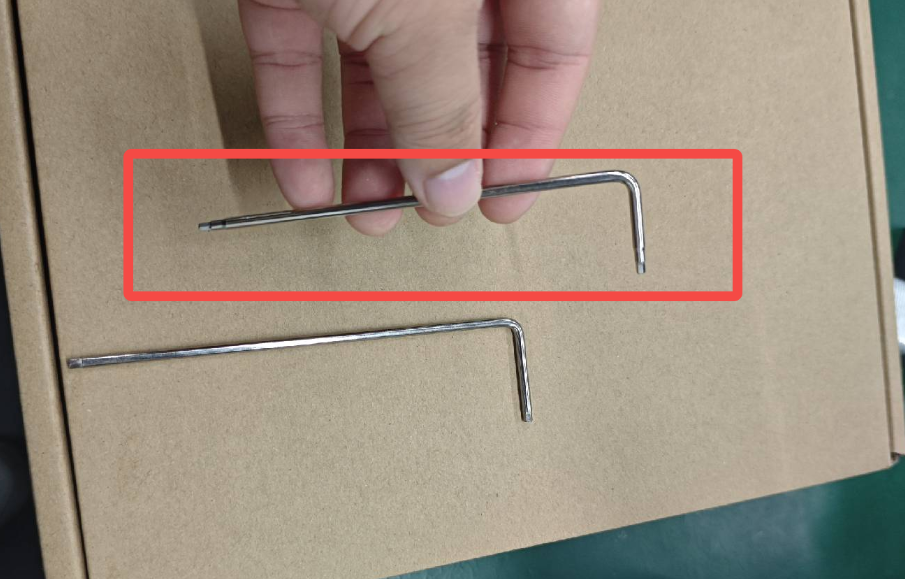

4. Remove the protective bag, tape at the top of the Z-axis and toolhead securing cardboard. Using an H2 hex key, remove the four X-axis securing screws and two rear shipping mounts as shown.

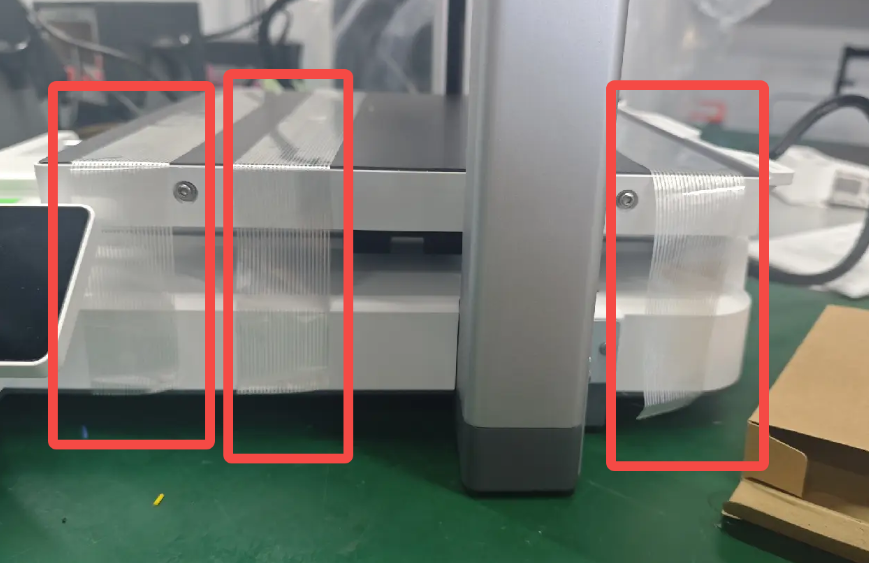

5. Remove the three tapes securing the heated bed. Fit the build plate flat within the positioning stops on the bed.

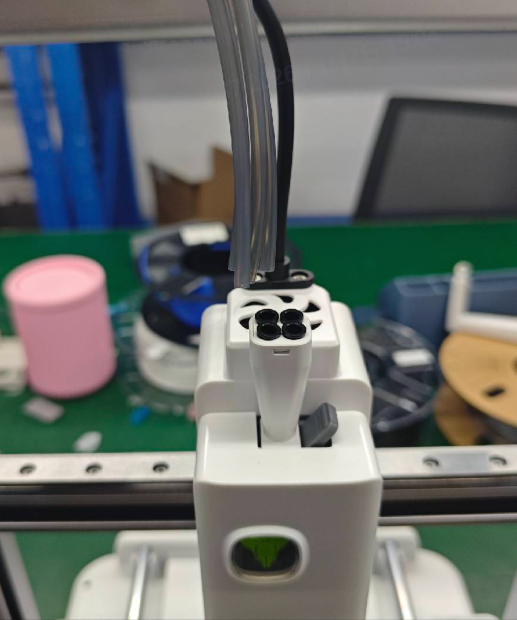

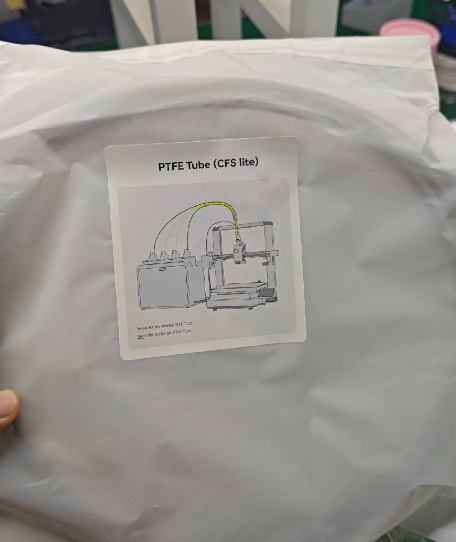

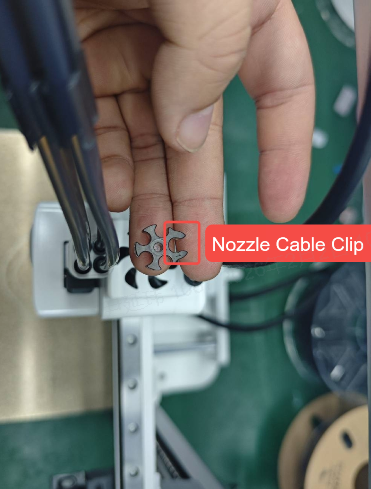

6. For the Color Combo, connect the four tubes between CFS Lite and the toolhead inlets. Fit the five-port clip and toolhead cable organizer in the direction shown.





7. Tubes in newer batches may all be the same length. If yours have different lengths, follow the arrangement in the manual for your version; do not cut them or use another printer's tube lengths.

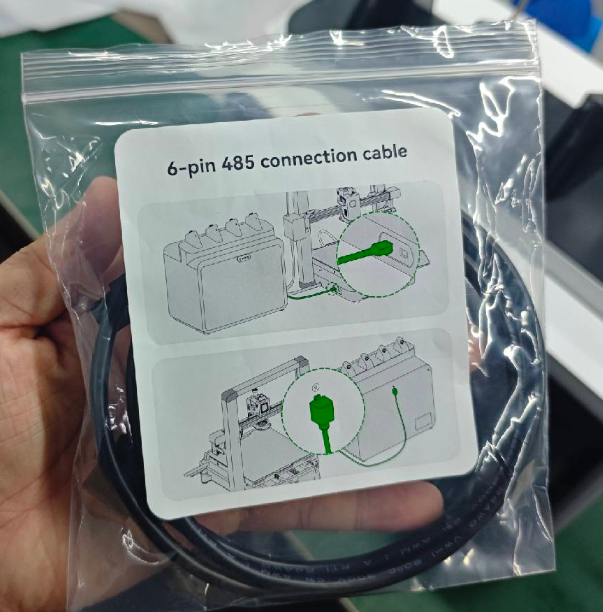

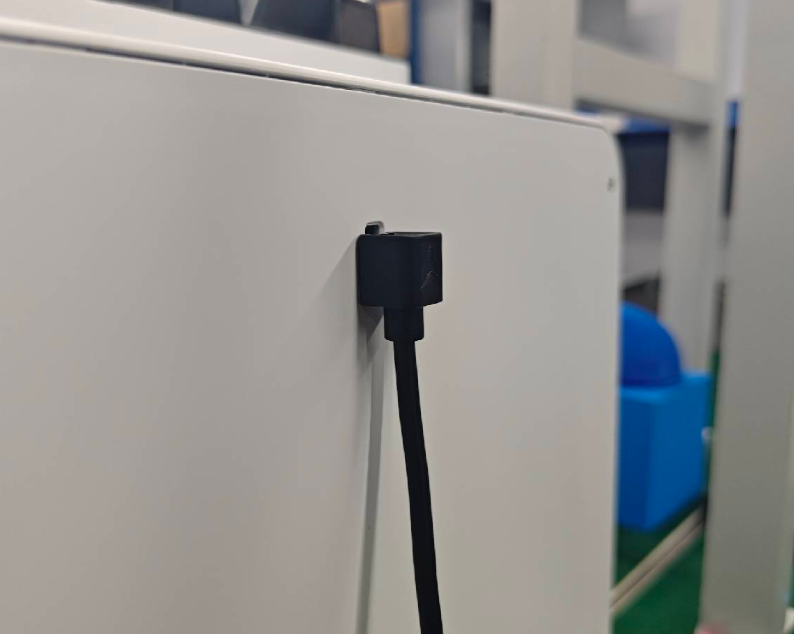

8. With the printer disconnected from power, connect the six-pin CFS cable. The right-angle end connects to CFS Lite.





9. For the Single version, use its spool holder and tube. Open the Single assembly guide and first-print guide for an external spool linked below.



10. For the Color Combo, prepare a space 876 mm wide, 550 mm high and approximately 743 mm deep. Leave 200 mm behind the printer and 120 mm in front for bed and cable movement.

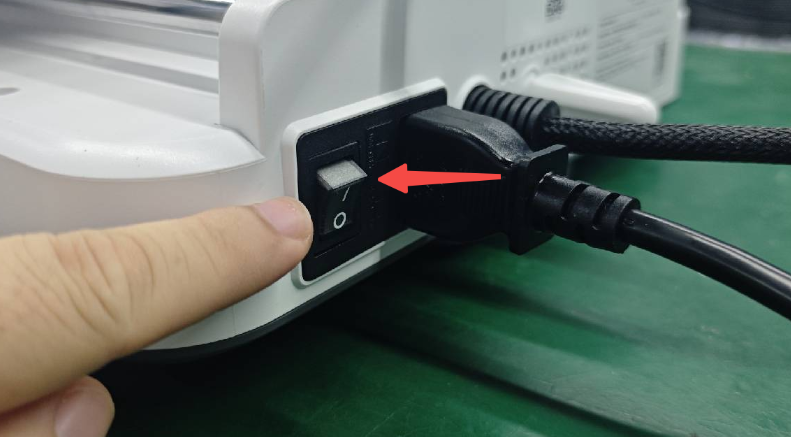

11. Connect power and switch on the printer. Rotate the screen horizontally only to face you, then select the language and complete the setup and machine-status checks.

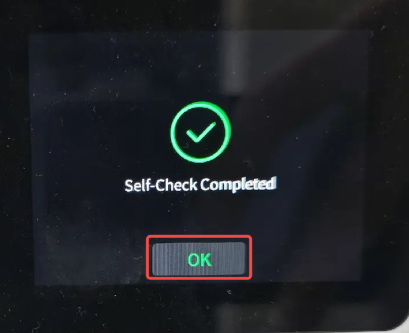

12. Connect Wi-Fi and pair Creality Cloud if you plan to use it. Press Start Check and wait for a successful result before starting the test model.





First startup and calibration

1. Before connecting power, check that you have removed the packaging foam and shipping restraints, released the securing screws and removed the tapes specified in the SparkX i7 steps above. Check that the build plate sits flat within its positioning stops and that the connections are secure.
2. Choose the language and settings on the touchscreen. For remote printing, connect the printer to the network and pair it with the app.
3. Run the checks and calibrations requested by the setup screen and wait for them to finish. Keep tools and models off the build plate, and do not touch moving parts.
4. If an error appears, photograph the message and error code, then check the assembly and printer manual before running calibration again. Once setup finishes successfully, you can load filament.

Fit and load filament

1. Start with an easy material such as PLA and select its slicer profile, which contains preset settings for that material. Check that the spool and filament suit your printer and feeding system. Verify compatibility before using flexible or abrasive filament.
2. Fit the spool so it can turn freely. Hold the filament end to prevent it from springing loose and tangling, then gently feed it into the path. Do not force it if you feel resistance.
3. Select the filament-loading command on the touchscreen as described in the printer manual. Wait for the nozzle to heat automatically, check that filament comes out, then continue with the on-screen steps.
4. Set the filament type and color for each channel or toolhead, and match their order in the slicer to the printer. Similar colors do not necessarily mean the same material type.
5. Before changing a spool, choose Unload on the touchscreen to remove the filament. Do not force filament out of a cold toolhead.

Download printer software

The desktop software for this printer is Creality Print. This is the slicer: use it to open your model, select the printer and filament settings, and prepare the file for printing.

Download Creality Print for desktop

1. Open the link on your computer, choose the version for your operating system and install the software.
2. Open the software and select your printer model, nozzle size and build plate type.
3. Choose the filament profile, which provides preset material settings, and match the color channels to the printer for multicolor printing.
4. If your printer model is missing, update the software and printer profiles from the same official source before continuing; do not choose a similarly named model.

Your first print: start with a small model

1. Start with a test model stored on the printer if one is available. Before printing, check that the filament type required by the file matches the material you have loaded.
2. To print your own file, download Creality Print from the software section above. Open the slicer and choose your printer model, nozzle size and build plate type; do not use another printer's profile.
3. Open the model in the slicer and place it within the build plate boundaries. Select the filament profile and keep the recommended settings for your first attempt; do not start at maximum speed.
4. For multicolor printing, assign each color to the correct channel or toolhead. If the file uses a prime tower, a printed structure used to clear the nozzle between colors, check that it fits within the build plate alongside the model and supports.
5. In the slicer, click Slice to prepare the file, then open Preview. Review the first layer, supports, print time and filament use, then send the file using a method your printer supports: over the network or via storage media.
6. Watch the first layer: the lines should be joined and adhere to the plate without dragging or lifting at the edges. If adhesion fails, stop the print, clean the plate and check calibration and settings before trying again.

After printing

• Wait for the nozzle, heated bed and model to cool before touching them. If the build plate is flexible and suitable for this method, remove it and flex it gently to release the model, then refit it flat.
• Remove the starting line and filament debris. Check for small pieces under the build plate or on the heated bed before refitting the plate.
• Avoid touching the print surface with your fingers. Clean it using a method suitable for the plate type, and check compatibility before using any cleaner.
• Store filament in a dry place and secure its end when removing a spool to prevent tangles. Check the tubes, nozzle wiper and spools regularly.
• Follow the maintenance schedule in your printer manual. Do not apply grease or oil unless the manual specifically instructs you to.

If something goes wrong

If the issue remains, send us the model name, error code and a photo of the connections or a short video showing the problem through the contact page.

Manuals and printer resources

• Download printer software
• Creality SparkX i7 printer manual
• i7 manuals
• Preassembled Single version setup
• Disassembled Single version assembly
• First print with an external spool
• First print with CFS Lite
• Assembly video

Prepared by Tajseem using the manufacturers' manuals. Videos remain in their original language. If your printer version differs or instructions have changed, follow the latest manual for your specific version.
